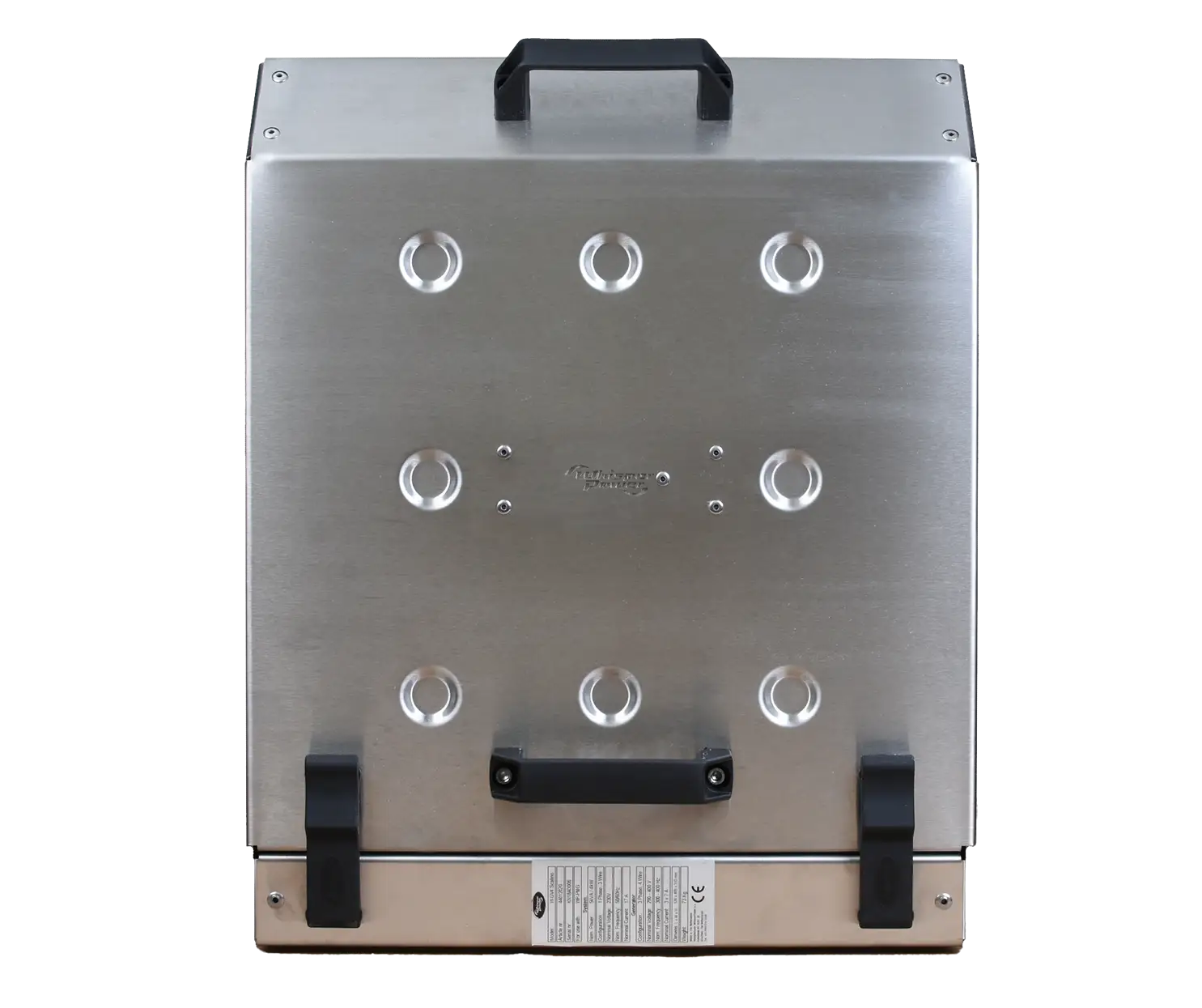

The Scalino generator is designed for outdoor (under-floor) use but can be used inside a vehicle or land object as well. The system consists of the WhisperPower diesel engine, the sound guard and the PMG inverter which has to be installed separately from the engine part. The inverter regulated AC output ensures a perfect use of critical appliances such as measurement equipment, computers, air conditioning, electrical cooking devices and various other AC (230 V, 50 Hz, or 120 V 60 Hz) equipment.
The WhisperPower Scalino 4 Genverter© is the smallest, lightest and most powerful liquid-cooled diesel generator in the world. With an extremely low audible noise level as a result of the oil cooled technology applied to the engine in combination with the rugged stainless steel sound shield. Output power of the non-emission model is 4.4 kVA, 3.5 kW, the output power of the Stage V version, fitted with a catalyst, is 3.4 kVA/ 3 kW. Operating speed between 2400 and 3600 rpm, adjustable or with automatic rpm control. Two Scalino Genverters can be operated in parallel to double the power. The Scalino Genverter is designed to operate with WhisperPower inverter/ chargers and (lithium) batteries enabling zero-emission/ silent time.
| Intermittent Power kW at 25°C (77°F) | 3 kW |
| Continuous Power kVA at 25°C (77°F) | 3.4 kVA |
| Nominal voltage / frequency | 1 Phase | 230 VAC | 50 Hz |
| Rpm Range | 3600 rpm |
| Engine | WhisperPower WP1 |
| Emission Class | Stage V certified / EPA Tier 4 |
| Noise Level | 57.3 dB(A) at 7 m, 75.3 dB(A) at 1m |
| Length x width x height (cabinet), mm (in.) | 451 × 449 × 510 (17.4 x 17.7 x 20.1) |
| Dry weight (cabinet + PMG), kg (lb.) | 73 + 7.6 (160.9 + 16.8) |
To download WhisperPower’s full Mobile Catalogue and learn more about the Scalino range click here
